GHTA type activated carbon filter

Category:

Mechanical filters, also known as pressure filters, are an important component of the pre-treatment and water purification system for pure water preparation. They are made of steel lined rubber or stainless steel, and can be divided into natural quartz sand filters, multi-media filters, activated carbon filters, manganese sand filters, etc. according to the different filtering media. They can be divided into single flow filters and double flow filters according to the water inlet method, and can be used in combination or separately depending on the actual situation.

Commodity name： GHTA type activated carbon filter

Message

Description

Introduction

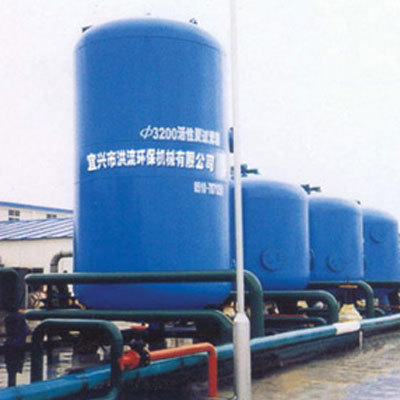

4. GHTA type activated carbon filter

Introduction

Activated carbon filters utilize the large adsorption surface area of activated carbon to remove pigments, organic matter, residual chlorine, colloids, microorganisms, and other substances from water.

Scope of Application

Decolorization, deodorization, and various dissolved organic compounds; In pure water technology, it can be used as a pretreatment for ion exchange, electrodialysis, and reverse osmosis to remove organic matter, colloids, and residual chlorine; It can also be used as a deep treatment method after secondary treatment to ensure the quality of recycled water.

Specification and model	External dimensions(mm)	Maximum water output(t/h)	Filtration rate(m/h)	Filter layer height(mm)	Maximum working pressure(MPa)
GHTA-30	φ300×3300	0.7	8-10	1400	0.6
GHTA-50	φ500×3850	2	8~10	1800	0.6
GHTA-100	φ1000×4810	7.8	8-10	2000	0.6
GHTA-150	φ1500×5425	17.6	8~10	2000	0.6
GHTA-200	φ2000×5930	31.4	8~10	2000	0.6
GHTA-250	φ2500×6060	49	8-10	2000	0.6
GHTA-300	φ3000×6390	70.6	8~10	2000	0.6
GHTA-320	φ3200×6600	80.3	8~10	2200	0.6
