FJS type dual flow mechanical filter

Category:

Mechanical filters, also known as pressure filters, are an important component of the pre-treatment and water purification system for pure water preparation. They are made of steel lined rubber or stainless steel, and can be divided into natural quartz sand filters, multi-media filters, activated carbon filters, manganese sand filters, etc. according to the different filtering media. They can be divided into single flow filters and double flow filters according to the water inlet method, and can be used in combination or separately depending on the actual situation.

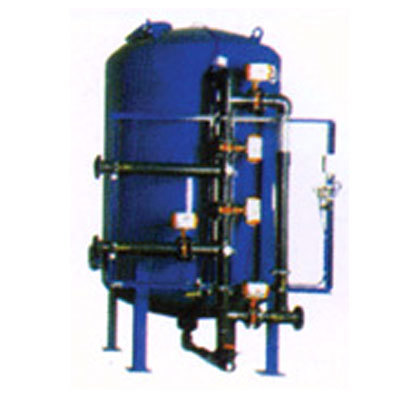

Commodity name： FJS type dual flow mechanical filter

Message

Description

Introduction

The inlet of the filter material of the dual flow mechanical filter is divided into two paths, one enters from the upper part of the filter material, and the other enters from the lower part of the filter material. The filtered effluent is discharged by the middle drainage device, which is located in the filter material layer 70cm away from the surface of the filter material.

Scope ofApplication

This filtration equipment is mainly used to remove suspended solids, sediment, iron, manganese, and agglomerated particles in raw water, as well as adhesive colloidal particles that cannot be removed by sedimentation methods.

Specification and model	External dimensions(mm)	Maximum water output(t/h)	Working pressure(MPa)	Height of quartz sand cushion layer(mm)
FJS-200	φ2000×4515	47.1	≤0.6	2000
FJS-250	φ2500×5115	74	≤0.6	2200
FJS-300	φ3000×5200	106	≤0.6	2200
