Our company produces a new type of equipment for purifying dusty gas: the bag filter. It boasts a purification efficiency of up to 99.5%, features a compact structure with a small footprint, long filter bag lifespan, stable and reliable operation, convenient maintenance, and the ability to handle hot dusty gases at temperatures up to 120 degrees.

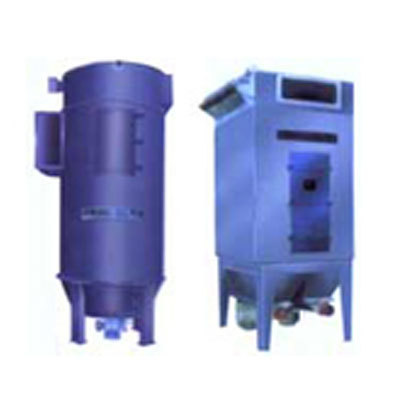

Commodity name： Bag filter

Message

Description

　　Working principle:

　　The baghouse dust collector produced by our company is a new type of equipment for purifying dust-containing gas. The purification effect is as high as 99.5%. It has a compact structure, small footprint, long filter bag life, stable and reliable operation, convenient maintenance, and can handle dust-containing hot gas at temperatures up to 120 degrees. The dust-containing airflow enters the lower box body from the inlet, where part of it settles, and the slight floating dust is retained by the filter bag. The purified air passes through the filter bag, enters the upper box body through the Venturi tube, and is discharged from the outlet. As the dust accumulated on the outer wall of the filter bag increases, when the resistance is within the specified range (generally 80-120 mm water column), the dust accumulated on the outer wall of the filter bag needs to be removed. Dust removal is achieved by sequentially triggering each control valve, opening the pulse valve, and allowing the compressed air in the air bag to be ejected from the spray pipe (primary air). This, through the Venturi tube, induces several times the amount of surrounding air (secondary air) into the filter bag. This causes the filter bag to suddenly expand in an instant, and accompanied by the reaction of the airflow, the dust is shaken off and falls into the ash gate, which is then discharged from the machine body through the ash discharge valve.

Main features:

　　Widely used in ventilation and dust removal and dust recovery in metallurgy, casting, mining, chemical industry, medicine, feed, building materials, grain processing and other industries.

Specification Model:

Bag filter
Technical Performance Model		MC24	MC36	MC48	MC60	MC72	MC84	MC96	MC120
Filter area (m2)		18	27	36	45	54	63	72	90
Number of filter bags		24	36	48	60	72	84	96	120
Filtration wind speed(m/min)		2-4	2-4	2-4	2-4	2-4	2-4	2-4	2-4
Processing air volume(m3/h)		2160-4300	3250-6480	4320-8630	5400-10800	6450-12900	7550-15100	8650-17300	10800-20800
Overall Size (mm)	Length Width Height	1025	1425	1820	2225	2625	3025	3585	4385
Overall Size (mm)	Length Width Height	Width 1678 Height 3660
Clear Ash Installation Position	Number of pulse valves	4	6	8	10	12	14	16	20
	Compressed air consumption(m3/min)	0.07-0.15	0.11-0.22	0.15-0.30	0.18-0.37	0.22-0.44	0.25-0.50	0.29-0.56	0.37-0.73
	Compressed air pressure(MPa)	0.5-0.7Must not be less than 0.4

Note: 1. Filter cloth should be selected according to the size of dust particles, dust concentration, moisture content, and temperature. 2. Other specifications and structures of baghouse dust collectors can be designed according to user needs.

　　2. Other specifications and structures of bag dust collectors can be designed according to user needs.
