Ceramic membrane is an asymmetric membrane made of inorganic ceramic materials through special processes, which is tubular or multi-channel in shape. The tube wall is densely covered with micropores. Under pressure, the raw material liquid flows inside or outside the membrane tube, small molecular substances (or liquids) pass through the membrane, and large molecular substances (or solid particles, liquid droplets) are intercepted by the membrane to achieve the purpose of separation, concentration, and purification.

Commodity name： Ultrafiltration technology

Message

Description

Working principle of ceramic membrane

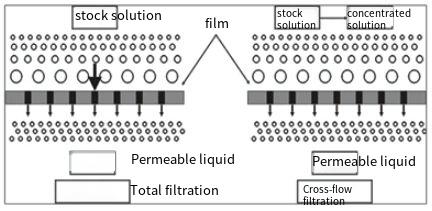

The following figure shows a comparison between inorganic ceramic membrane omnidirectional filtration and cross flow filtration

The common parameters of 19 core industrial membrane modules are:

Loading membrane components	19 pieces
Filling membrane area	4.5m²
External dimensions	Outer diameter: φ220 mm, Length 1021 mm
Penetration side outlet size	DN40
Shell material	304, 316L, etc
Sealing connection	Flange (gasket material: silicone rubber)

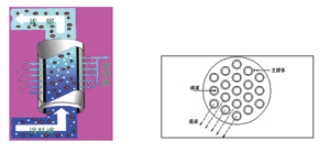

Schematic diagram of permeation pathway of permeate in multi-channel membrane element.

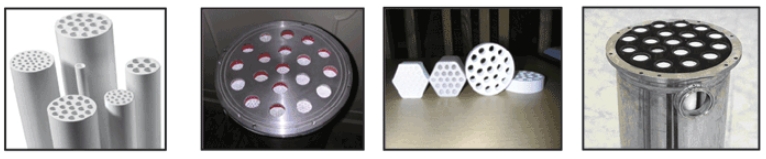

Outline drawing of membrane module
